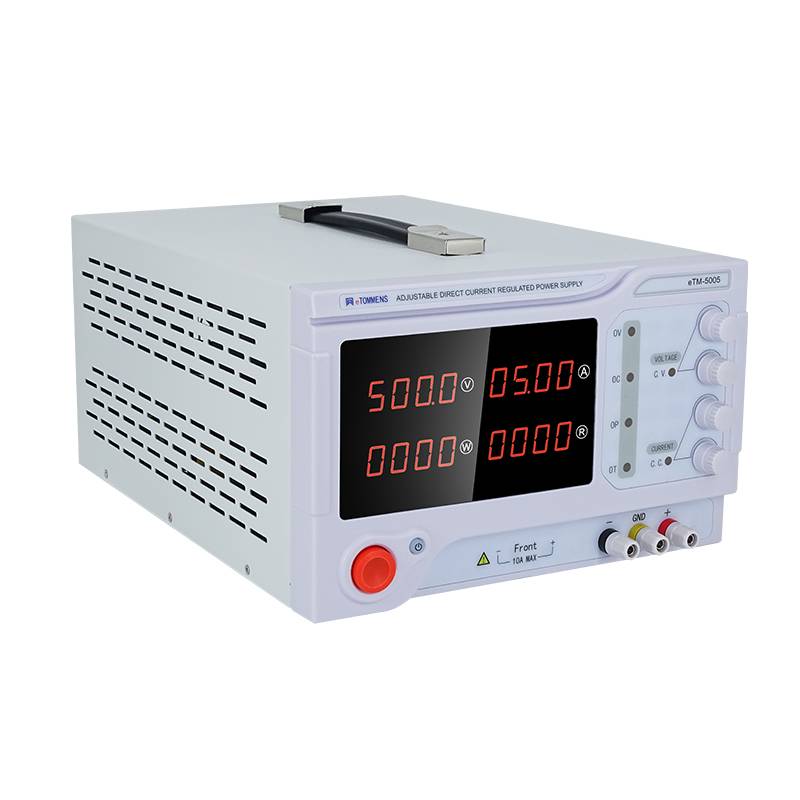

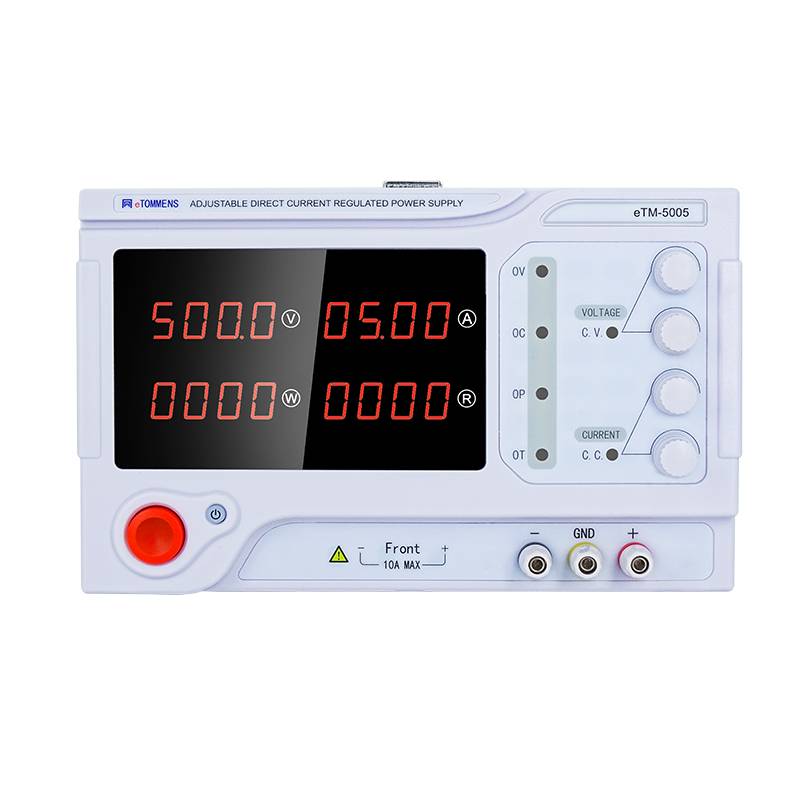

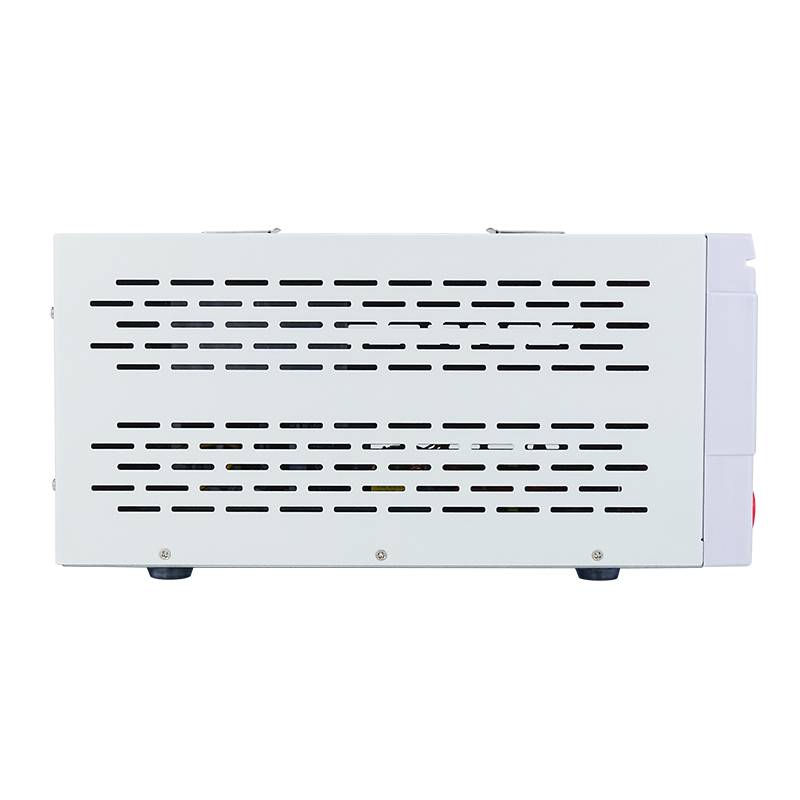

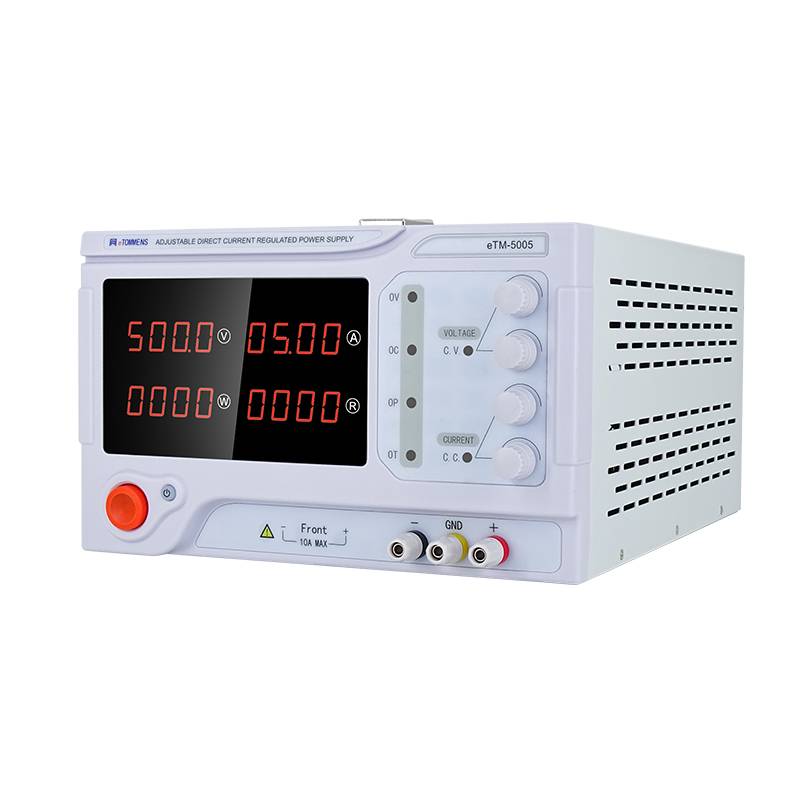

Product Images
Series Overview
Regular series is a 6000W desktop DC regulated power supply with four LED displays showing voltage, current, power and set value.
Product Highlights
- Voltage0~150V / 0~200V / 0~300V / 0~400V / 0~500V
- Current0~5A / 0~2A / 0~3A
- Power750W / 400W / 600W / 1000W / 900W / 1500W / 800W / 1200W / 2000W / 2500W
6000W 0 To 500V Four-knobs Switching Power Supply
Series / category: High Power DC Power Supply
Product Overview
Regular series is a 6000W desktop DC regulated power supply with four LED displays showing voltage, current, power and set value. The lineup covers 62 models from 400W to 6000W with voltages from 15V to 800V, intended for equipment aging and lamp testing.
Key Features
- Voltage and current can be preconfigured
- Fine adjustment of voltage and current
- Support five powerful protection functions

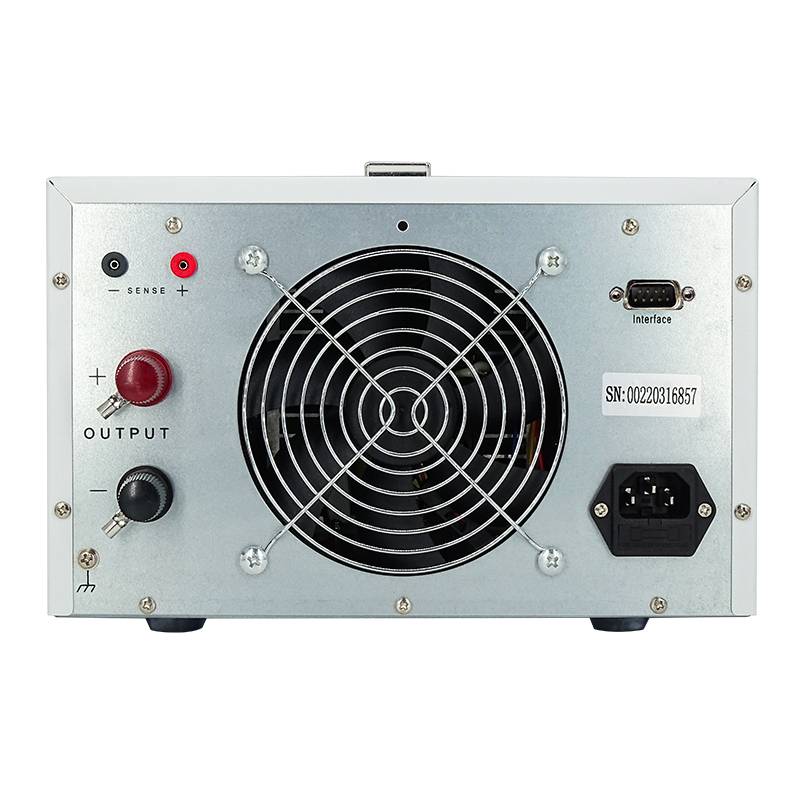

- Rear SENSE compensation interface
- ON/OFF output on-off switch
- Rear communication function
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
11 models in this series. Full electrical data is in the specification table below.
- eTM-1505
- eTM-2002
- eTM-2003
- eTM-2005
- eTM-3002
- eTM-3003
- eTM-3005
- eTM-4002
- eTM-4003
- eTM-4005
- eTM-5005
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-1505 | 0~150V | 0~5A | 750W |
| eTM-2002 | 0~200V | 0~2A | 400W |
| eTM-2003 | 0~200V | 0~3A | 600W |
| eTM-2005 | 0~200V | 0~5A | 1000W |
| eTM-3002 | 0~300V | 0~2A | 600W |
| eTM-3003 | 0~300V | 0~3A | 900W |
| eTM-3005 | 0~300V | 0~5A | 1500W |
| eTM-4002 | 0~400V | 0~2A | 800W |
| eTM-4003 | 0~400V | 0~3A | 1200W |
| eTM-4005 | 0~400V | 0~5A | 2000W |
| eTM-5005 | 0~500V | 0~5A | 2500W |
Applications
- Equipment aging
- Lamp testing
Communication Interface
- Customizable fixed 110V interface; Customizable SENSE interface
- Rear SENSE compensation interface
- Rear communication function
Protection Functions
- Support five powerful protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- User Manual High power 4 knobs regular power supply.pdf Download · 664 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6000W 0 To 500V Four-knobs Switching Power Supply?
The 6000W 0 To 500V Four-knobs Switching Power Supply is a DC power supply from eTOMMENS. 11 models are listed in the specification table on this page.
Which control interfaces does it support?
Customizable fixed 110V interface; Customizable SENSE interface Rear SENSE compensation interface
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
